Cable Cleats

Description

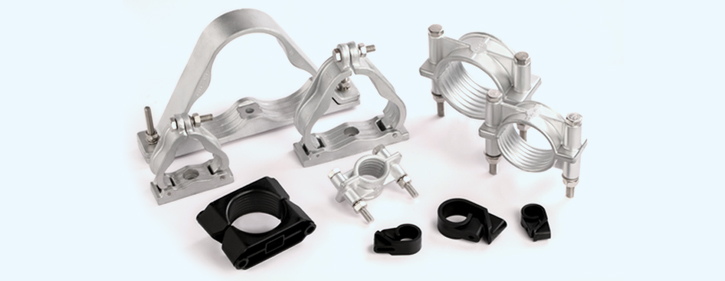

NECO offers a comprehensive and diverse range of cable cleats, designed for use within industrial areas and hazardous locations. Cable cleats are available for a number of different applications such as rail, underground, oil and gas, mining and petrochemical. They’re the perfect accompaniment to our extensive range of cable glands.

Features :

  • Suitable for use with cable diameters 30 to 135 mm.
  • Manufactured from Aluminium alloy.
  • Two -piece, two fixing design.
  • Can be double stacked on common fixings.
  • Operating temperature – 60°C to +105°C.
  • Suitable for LV & HV cables upto 132KV.
  • Can be used for all types of cable routes.
  • Plain finish for normal industrial areas or indoor application.
  • Epoxy coated version available for harsh environments/outdoor.
  • Optional Neoprene & EPDM liner available.
  • In accordance with BS EN 61914:2009.
  • Short circuit withstand : 110 KA (peak).
  • Supplied with SS 304 Fasteners.

Technical Details

Cable Diameter (mm)
Cable Diameter With Liner (mm)
W(mm)
H(mm)
D(mm)
P(mm)
Fixing Bolt
Min
Max
Min
Liner Thk.
Max
30
40
24
3
34
93
42
45
71
2 X M10
40
50
34
3
44
104
52
45
82
2 X M10
48
55
42
3
49
108
60
45
86
2 X M10
55
64
49
3
58
118
67
50
95
2 X M10
64
70
58
3
64
125
76
50
102
2 X M10
70
76
64
3
70
130
82
50
108
2 X M10
76
83
70
3
77
138
90
60
115
2 X M12
83
89
77
3
83
144
97
60
121
2 X M12
89
95
83
3
89
152
107
60
130
2 X M12
95
101
85
5
91
158
113
60
136
2 X M12
101
115
91
5
105
175
119
85
152
2 X M12
115
125
105
5
115
180
133
85
158
2 X M12
125
135
115
5
125
192
143
85
170
2 X M12
