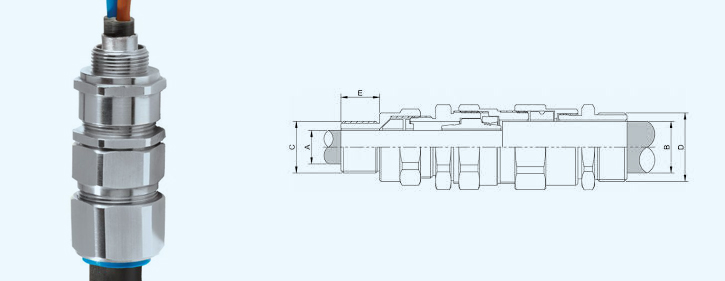

E Series Cable Gland

Description

The E* Series Cable Gland refers to a range of cable glands that fall under the ‘E’ series designation purposes. The cable glands offer environmental protection by sealing the cable entry points. They also provide resistance against dust, dirt, water, and other environmental elements that can potentially damage cables. E* Series Cable Glands are widely used in various industries for cable management.

Type of E Series Cable Glands

The E* Series double compression cable glands maintain Flameproof Exd and Increased Safety Exe methods of explosion protection IP67. Reversible Armour Clamping Ring (RAC) allows use with, Steel & Aluminium Wire Armoured, braided, lead sheathed braided, tape or flat steel wire armoured cable according next types of E* Series Cable Gland.

  • EIFW : For all types of Steel & Aluminium Wire Armoured Cables (RAC Ring Position – W).
  • E2FW : For Lead Sheathed Steel & Aluminium Wire Armoured Cables (RAC Rin Position -W).
  • EIFX : For Braid & Steel Tape Armoured Cables (RAC Ring Position – XYZ).
  • E2FX : For Lead Sheathed Braided & Steel Tape Armoured cables (RAC Ring Position – XYZ).
  • EIFU : For all types of Armoured cables (RAC Ring Position – W).
  • E2FU : For all types of Lead Sheathed Armoured cables (RAC Ring Position – W).

Industrial Cable Glands

Other Products

Specification

GLAND
STANDARD ENTRY THREADS OTHER OPTIONS
THREAD LENGTH
CABLE DIMENSIONS (MM)
ARMOUR ACCEPTANCE
CABLE DIA (A
CABLE DIA (B)
Metric (ISO)
NPT/ BSP
ET
Metric (ISO)
NPT/ BSP
ET
MIN
MAX
MIN
MAX
W
XYZ
Ex E*Series M 20S 1/2" 3/4" 15 19 16.5 6.1 11.6 9.5 15.9 0.90/1.25 0.15/0.35
Ex E*Series M 20 1/2" 3/4" 15 19 16.5 6.5 13.9 12.5 20.9 0.90/1.25 0.15/0.50
Ex E*Series M 25 3/4" 1" 15 20 16.5 11.1 19.9 17 26.2 1.25/1.60 0.15/0.50
Ex E*Series M 32 1" 1-1/4" 15 22 16.5 17 26.2 22.9 33.9 1.60/2.00 0.15/0.55
Ex E*Series M 40 1-1/4" 1-1/2" 15 22 16.5 22 32.1 26 44.4 1.60/2.00 0.20/0.60
Ex E*Series M 50S 1-1/2" 2" 20 22 20 29.5 38.1 35 46.7 2.00/2.5 0.20/0.60
Ex E*Series M 50 2" 2" 20 22 20 35.6 44 38 53.1 2.00/2.5 0.30/0.80
Ex E*Series M 63S 2" 2-1/2" 20 22 20 40.1 49.9 45.6 59.4 2.50 0.30/0.80
Ex E*Series M 63 2-1/2" 2-1/2" 20 29 20 47.2 55.9 54.6 65.9 2.50 0.30/0.80
Ex E*Series M 75S 2-1/2" 3" 20 29 20 52.8 61.9 57 72.1 2.50 0.30/1.00
Ex E*Series M 75 3" 3" 20 29 20 59.1 67.9 60.4 78.5 2.50 0.30/1.00
Ex E*Series M 90 3" 3-1/2" 20 29 20 66.6 79.3 69.2 90.4 3.15 0.45/1.00
