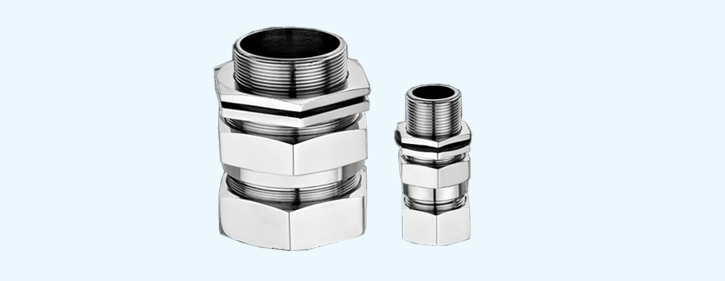

Flameproof DC Cable Gland IIA & IIB

Technical Details

Flame Proof Double Compression Glands are generally used in flammable gas / vapours area (for gas group I, IIA & IIB) as well as in normal climatic conditions also which are weather proof, water proof and dust proof (IP-66) which can be used in Hazardous climatic condition. Also when protected by PVC shrouds it can be used in corrosive atmosphere. These glands are suitable for all types of cables like Armour , Unarmour, Power, Instrumention, XLPE etc.

Gland Consist of Following Parts:

  • Lock Nut
  • Entry Seal Ring
  • Gland Nipple
  • Inner Seal Ring
  • Armour Clamping Ring
  • Gland Body
  • Outer Seal
  • Compression Nut

Double Compression Cable Glands

Other Products

Where can
you find NECO

Our Location

Manikonda, Ranga Reddy, Dist. Telangana - 500 075, INDIA

Contact Us Now

Technical Details

SIZE AEFP01SSA TO AEFP 016 ALTERNATE FINISH Tin, Chrome
ENTRY THREAD METRIC SEAL MATERIAL Neoprene / Silicon
ALTERNATE THREAD NPT, BSC ET, PG, METRIC, BSP SEAL SHORE HARDNESS 50 - 60
ENTRY THREAD RANGE 1/2" TO 4.5" OR M12 TO M110 ACCESSORIES Shroud, Earth Tag, Stopper, Reducer, Adaptors (Supplied Separately Upon Request)
GLAND MATERIAL Brass (IS-319) GLAND STANDARD BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012)
ALTERNATE MATERIAL Aluminium, SS, MS FLAMEPROOF PROTECTION IS/IEC 60079-1:2007 (Reaffirmed : 2012)
OPERATING TEMPERATURE -30 C TO +100 C INGRESS PROTECTION IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014)
FINISH Nickel Plated APPROVAL Our AEFP Series Cable Glands are approved CSIR-Central Institute of Mining And Fuel Research – Dhanbad

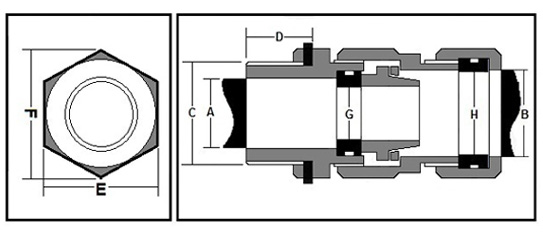

Specification

No.
SIZE
H
G
E
F
C
D
CABLE DIMENSIONS
(THREAD)
(A/F)
(A/C)
ET
MM
(THREAD
LENGTH)
A (UNDER ARMOUR DIA)
B (OVER ALL DIA)
1
FP 01SSA
12.00
8.50
19.50
22.50
1/2"ET
M12
25
8.00
10.0
2
FP 01SS
13.50
9.00
22.00
25.00
3/4"ET
M20
25
8.00
12.0
3
FP 01S
17.50
11.00
25.00
29.00
3/4"ET
M20
25
10.00
16.5
4
FP 01
19.50
14.50
27.50
32.00
3/4"ET
M20
25
12.50
18.0
5
FP 01A
19.50
14.50
27.50
32.00
1"ET
M25
25
12.50
18.0
6
FP 02
21.00
16.00
29.00
34.00
1"ET
M25
25
14.00
20.0
7
FP 02A
21.00
16.00
29.00
34.00
3/4"ET
M20
25
14.00
20.0
8
FP 03
23.50
18.00
31.00
36.00
1"ET
M25
25
16.00
23.0
9
FP 04
27.50
21.00
37.00
43.00
1"ET
M25
25
19.00
26.0
10
FP 04A
27.50
21.00
37.00
43.00
1.1/4"ET
M32
25
19.00
26.0
11
FP 05
31.50
25.00
41.00
47.00
1.1/4"ET
M32
25
23.00
30.0
12
FP 05A
31.50
25.00
41.00
47.00
1.1/2"ET
M40
25
23.00
30.0
13
FP 06
34.00
28.00
46.00
53.00
1.1/2"ET
M40
25
26.00
33.0
14
FP 06A
34.00
28.00
46.00
53.00
1.1/4"ET
M32
25
26.00
33.0
15
FP 07
38.00
31.00
50.50
58.00
1.1/2"ET
M40
25
29.00
37.0
16
FP 08
42.00
36.00
56.00
64.00
2"ET
M50
25
34.00
41.0
17
FP 09
47.00
41.00
59.00
67.00
2"ET
M50
25
39.00
46.0
18
FP 010
53.00
45.00
66.00
76.00
2"ET
M50
25
43.00
52.0
19
FP 010A
53.00
45.00
66.00
76.00
2.1/2"ET
M63
25
43.00
52.0
20
FP 011S
57.50
51.00
74.00
85.00
2.1/2"ET
M63
25
49.00
56.0
21
FP 011
61.50
55.00
79.00
92.00
2.1/2"ET
M63
25
53.00
60.0
22
FP 012
68.00
62.00
84.00
97.00
3"ET
M75
25
60.00
66.0
23
FP 013A
74.00
67.00
90.00
103.00
3"ET
M75
25
65.00
72.0
24
FP 013
79.00
73.00
99.00
113.00
3.1/4"ET
M82
25
71.00
78.0
25
FP 014
86.00
80.00
105.00
122.00
3.1/2"ET
M90
25
78.00
84.0
26
FP 015
96.00
89.00
116.00
134.00
4"ET
M100
25
87.00
94.0
27
FP 016
106.00
103.00
130.00
149.00
4.1/2"ET
M110
25
10.00
104.0
