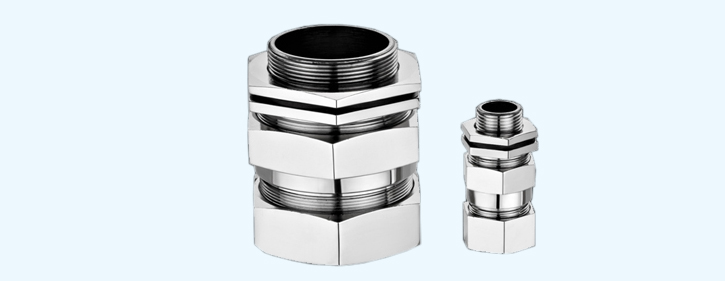

Weatherproof DC Cable Gland

Description

These glands are use under most climatic conditions & Generally for Armored Cable & Outdoor use. These are Weather proof and may be used in the corrosive condition when protected by shroud, It provides environmental seal for inner & outer sheath of cables. The cable glands also provides mechanical cable retention and electrical continuity via armor wire termination. This glands are suitable for all types of cables like armour, Unarmour, Power, Instrumention, XLPE etc.

Gland Consist of Following Parts:

  • Lock Nut
  • Entry Seal Ring
  • Gland Nipple
  • Inner Seal Ring
  • Armour Clamping Ring
  • Gland Body
  • Outer Seal
  • Compression Nut
  • Skid Washer

Double Compression Cable Glands

Other Products

Where can
you find NECO

Our Location

Manikonda, Ranga Reddy, Dist. Telangana - 500 075, INDIA

Contact Us Now

Technical Details

SIZE AEWP01SSA TO AEWP 016 SEAL MATERIAL NATURAL / NITRILE
ENTRY THREAD BSC ET, ALTERNATE THREAD : NPT, PG, METRIC, BSP SEAL SHORE HARDNESS 50 - 60
ENTRY THREAD RANGE 1/2" TO 4.5 “ OR M12 TO M110 ACCESSORIES SHROUD, EARTH TAG, STOPPER, REDUCER, ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST)
GLAND MATERIAL BRASS (IS-319) GLAND STANDARD BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012)
ALTERNATE MATERIAL ALUMINIUM, S.S, M.S INGRESS PROTECTION IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014)
OPERATING TEMPERATURE -30 C TO +100 C APPROVAL

Secure AEWP Series Cable Glands are approved by CSIR-Central Iinstitute of Mining and Fuel Research – Dhanbad
FINISH NICKEL PLATED, TIN, CHROME

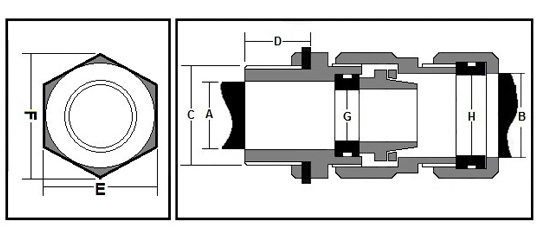

Specification

No.
SIZE WP SERIES
H
G
E
E
C
D
CABLE DIMENSIONS
(THREAD)
(A/F)
(A/C)
ET
MM
(THREAD
LENGTH)
A (UNDER ARMOUR DIA)
B (OVER ALL DIA)
1
WP 01SSA
12.00
8.50
19.50
22.50
1/2"ET
M12
15
8.00
10.0
2
WP 01SS
14.00
9.00
22.00
25.00
3/4"ET
M20
15
8.00
12.5
3
WP 01S
17.50
11.00
25.00
29.00
3/4"ET
M20
15
10.00
16.5
4
WP 01
19.50
14.50
27.50
32.00
3/4"ET
M20
15
12.50
18.5
5
WP 01A
19.50
14.50
27.50
32.00
1"ET
M25
15
12.50
18.5
6
WP 02
21.00
16.00
29.00
34.00
1"ET
M25
15
14.00
20.0
7
WP 02A
21.00
16.00
29.00
34.00
3/4"ET
M20
15
14.00
20.0
8
WP 03
23.50
18.00
31.00
36.00
1"ET
M25
15
16.00
23.0
9
WP 04
27.50
21.00
37.00
43.00
1"ET
M25
15
19.00
26.0
10
WP 04A
27.50
21.00
37.00
43.00
1.1/4"ET
M32
15
19.00
26.0
11
WP 05
31.50
25.00
41.00
47.00
1.1/4"ET
M32
15
23.00
30.0
12
WP 05A
31.50
25.00
41.00
47.00
1.1/2"ET
M40
15
23.00
30.0
13
WP 06
34.00
28.00
46.00
53.00
1.1/2"ET
M40
15
26.00
33.0
14
WP 06A
34.00
28.00
46.00
53.00
1.1/4"ET
M32
15
26.00
33.0
15
WP 07
38.00
31.00
50.50
58.00
1.1/2"ET
M40
15
29.00
37.0
16
WP 08
42.00
36.00
56.00
64.00
2"ET
M50
15
34.00
41.0
17
WP 09
47.00
41.00
59.00
67.00
2"ET
M50
15
39.00
46.0
18
WP 010
53.00
45.00
66.00
76.00
2"ET
M50
20
43.00
52.0
19
WP 010A
53.00
45.00
66.00
76.00
2.1/2"ET
M63
20
43.00
52.0
20
WP 011S
57.50
51.00
74.00
85.00
2.1/2"ET
M63
20
49.00
56.0
21
WP 011
61.50
55.00
79.00
92.00
2.1/2"ET
M63
20
53.00
60.0
22
WP 012
68.00
62.00
84.00
97.00
3"ET
M75
20
60.00
66.0
23
WP 013A
74.00
67.00
90.00
103.00
3"ET
M75
20
65.00
72.0
24
WP 013
79.00
73.00
99.00
113.00
3.1/4"ET
M82
20
71.00
78.0
25
WP 014
86.00
80.00
105.00
122.00
3.1/4"ET
M90
20
78.00
84.0
26
WP 015
96.00
89.00
116.00
134.00
4"ET
M100
20
87.00
94.0
27
WP 016
106.00
103.00
130.00
150.00
4.1/2"ET
M110
25
100.00
104.0
