- Material : Brass or Gun Metal
- Application : Earth Clamp for connection between copper cable with copper compression terminal and copper or copper bonded earth rod.
Description

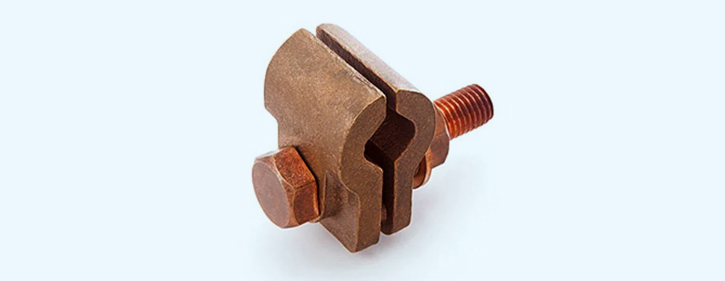

A Rod to Cable Lug Clamp (Type B) is a type of earthing clamp used to connect a cable or round conductor to an earth rod. It provides a secure and reliable connection for grounding purposes. These clamps are typically made of strong materials like copper alloy or gunmetal and may use bolts made of phosphor bronze, stainless steel, or mild steel (copper plated).
Technical Details
Earth Rod Size mm
|
Copper Tape Size
|
Weight Kg
|
14
|
M10
|
0.19
|
14
|
M12
|
0.2
|
14
|
M14
|
0.2
|
16
|
M10
|
0.19
|
16
|
M12
|
0.2
|
16
|
M14
|
0.2
|
17
|
M10
|
0.22
|
17
|
M12
|
0.23
|
17
|
M14
|
0.23
|
17
|
M16
|
0.24
|
20
|
M10
|
0.22
|
20
|
M12
|
0.23
|
20
|
M14
|
0.23
|
20
|
M16
|
0.24
|
