- Material : Brass or Gun Metal
- Application : These clamps are used to connect flat taps in a horizontal position on the rod.
Description

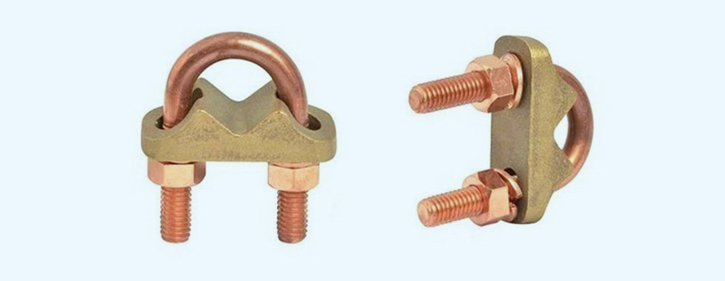

A U-bolt rod clamp (E type) is a type of clamp used to connect a flat tape or stranded conductor to an earth rod, typically in earthing and lightning protection systems. These clamps are designed to provide a secure and low-resistance connection, ensuring the effectiveness of the grounding or lightning protection system.
Technical Details
Rod Dia.MM |
Conductor Range mm2 |
9.5 |
6-35 |
14.0 |
16-70 |
16.0 |
16-95 |
20.0 |
70-120 |
25.0 |
70-185 |
